Name: Lightning™ S2-Series Tire Air Chuck - 1/4" F-NPT
Availability: InStock

Lightning™ S2-Series Tire Air Chuck - 1/4" F-NPT | JACO

[{"id":153426100247,"handle":"lightning-tire-air-chucks","updated_at":"2025-04-15T15:40:04-05:00","published_at":"2019-10-23T10:33:39-05:00","sort_order":"manual","template_suffix":"wide","published_scope":"web","title":"Lightning™ Locking Tire Air Chucks","body_html":"\u003cdiv style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003e\u003cbr\u003e\u003c\/div\u003e\n\u003ch2 style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003eLightning Locking Tire Air Chucks\u003cbr\u003e\n\u003c\/h2\u003e\n\u003ch3 style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003eRevolutionizing The Pneumatics Industry\u003c\/h3\u003e\n\u003cscript src=\"https:\/\/fast.wistia.com\/embed\/medias\/rdszrkcto6.jsonp\" async=\"\"\u003e\u003c\/script\u003e \u003cscript src=\"https:\/\/fast.wistia.com\/assets\/external\/E-v1.js\" async=\"\"\u003e\u003c\/script\u003e\n\u003cdiv style=\"padding: 56.25% 0 0 0; position: relative;\" class=\"wistia_responsive_padding\" data-mce-style=\"padding: 56.25% 0 0 0; position: relative;\"\u003e\n\u003cdiv style=\"height: 100%; left: 0; position: absolute; top: 0; width: 100%;\" class=\"wistia_responsive_wrapper\" data-mce-style=\"height: 100%; left: 0; position: absolute; top: 0; width: 100%;\"\u003e\u003cspan style=\"display: inline-block; height: 100%; position: relative; width: 100%;\" class=\"wistia_embed wistia_async_rdszrkcto6 popover=true popoverAnimateThumbnail=true videoFoam=true\" data-mce-style=\"display: inline-block; height: 100%; position: relative; width: 100%;\"\u003e \u003c\/span\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n \n\u003ch4\u003e\u003cstrong\u003ePatented Locking Tire Air Chucks - Exclusively by JACO.\u003c\/strong\u003e\u003c\/h4\u003e\n\u003cp\u003eOur revolutionary patented technology takes tire maintenance to the next level thanks to our proprietary \u003cstrong\u003eAirLock™ Internal Locking System\u003c\/strong\u003e that grabs the tire valve stem with a simple push and holds under high pressure or movement, providing a 100% air tight seal that is far superior to other air chuck options available. The quick-release button allows you to quickly disconnect the chuck from the valve stem with no measurable air loss.\u003cbr\u003e\u003cbr\u003e\u003cstrong\u003eNo more fighting with the valve stem. No more air leaks.\u003c\/strong\u003e\u003c\/p\u003e\n\u003ch3\u003eRelated Categories:\u003c\/h3\u003e\n\u003cdiv class=\"multiple-items\"\u003e\n\u003cdiv\u003e\u003ca href=\"https:\/\/jacosuperiorproducts.com\/collections\/tire-inflator-gauges\" title=\"tire inflator gauge\"\u003e \u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0819\/8117\/files\/flowproanalogyemain_large_adcf2acd-d4cf-47a8-a285-c898cec31451_240x240.jpg?v=1580276527\"\u003e \u003c\/a\u003e\u003c\/div\u003e\n\u003cdiv\u003e\u003ca href=\"https:\/\/jacosuperiorproducts.com\/collections\/lightning-tire-air-chucks\" title=\"lightning tire chucks\"\u003e \u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0819\/8117\/files\/Copy-of-INFLATOR_20_large_a20df347-f4f1-4509-b07c-152067a52f0e_240x240.png?v=1580275210\"\u003e \u003c\/a\u003e\u003c\/div\u003e\n\u003cdiv\u003e\u003ca href=\"https:\/\/jacosuperiorproducts.com\/collections\/tire-pressure-gauges\" title=\"tire pressure gauge\"\u003e \u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0819\/8117\/collections\/mainimage_1024x1024_65cd33cd-1d61-4f86-952f-1a1da447f4c9_240x240.jpg?v=1570659938\"\u003e \u003c\/a\u003e\u003c\/div\u003e\n\u003cdiv\u003e\u003ca href=\"https:\/\/jacosuperiorproducts.com\/collections\/air-hoses-fittings\" title=\"air hose\"\u003e \u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0819\/8117\/collections\/Copy-of-PRESSURE_1_240x240.png?v=15802772299\"\u003e \u003c\/a\u003e\u003c\/div\u003e\n\u003c\/div\u003e","image":{"created_at":"2019-10-23T10:39:33-05:00","alt":"locking air chuck","width":1000,"height":1000,"src":"\/\/jacosuperiorproducts.com\/cdn\/shop\/collections\/Copy-of-INFLATOR_20.png?v=1659558185"}},{"id":267766693955,"handle":"tire-air-chucks","updated_at":"2025-04-15T15:40:04-05:00","published_at":"2022-07-24T10:20:34-05:00","sort_order":"manual","template_suffix":"3-across","published_scope":"web","title":"Tire Air Chucks","body_html":"\u003ch2 style=\"text-align: center;\"\u003eTire Air Chucks by JACO\u003c\/h2\u003e\n\u003ch3 style=\"text-align: center;\"\u003eMaximize Efficiency with Our Premium Tire Air Chucks\u003c\/h3\u003e\n\u003cdiv\u003e\n\u003ch3\u003e\u003cstrong\u003eAir Chucks for Every Need and Application\u003c\/strong\u003e\u003c\/h3\u003e\n\u003cp\u003eAt JACO, we offer an extensive selection of Tire Air Chucks designed to suit various types of valves and usage needs. From manual to locking styles, and for Schrader or Presta Valves, our collection is designed to make tire inflation a breeze.\u003c\/p\u003e\n\u003ch4\u003e\u003cstrong\u003eManual vs. Locking Air Chucks\u003c\/strong\u003e\u003c\/h4\u003e\n\u003cp\u003eChoose from Manual Hold air chucks that require manual holding onto the valve stem, or opt for our Locking air chucks that conveniently lock-on to the valve stem, providing a secure and hands-free operation.\u003c\/p\u003e\n\u003ch4\u003e\u003cstrong\u003eSchrader vs. Presta Valve\u003c\/strong\u003e\u003c\/h4\u003e\n\u003cp\u003eOur air chucks are compatible with both Schrader Valves (standard vehicle and bicycle valve stem type) and Presta Valves (commonly found on mountain bikes and road bikes), ensuring versatile and widespread use.\u003c\/p\u003e\n\u003ch4\u003e\u003cstrong\u003eOpen Flow vs. Closed Flow\u003c\/strong\u003e\u003c\/h4\u003e\n\u003cp\u003eChoose from our Open Flow air chucks that allow air to pass through freely, ideal for use with inline tire inflation tools, or our Closed Flow chucks that must be connected to a valve stem to allow air to pass through, perfect for direct attachment to the end of an air compressor hose.\u003c\/p\u003e\n\u003ch3\u003e\u003cstrong\u003eJACO - Your Trusted Partner for Tire Maintenance\u003c\/strong\u003e\u003c\/h3\u003e\n\u003cp\u003eExplore our collection of Tire Air Chucks today and find the perfect solution to optimize your tire inflation process. With JACO, tire maintenance is always effortless and efficient.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003chr\u003e\n\u003ch3\u003eRelated Categories:\u003c\/h3\u003e\n\u003cdiv class=\"multiple-items\"\u003e\n\u003cdiv\u003e\u003ca href=\"https:\/\/jacosuperiorproducts.com\/collections\/tire-inflator-gauges\" title=\"tire inflator gauge\"\u003e \u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0819\/8117\/files\/flowproanalogyemain_large_adcf2acd-d4cf-47a8-a285-c898cec31451_240x240.jpg?v=1580276527\"\u003e \u003c\/a\u003e\u003c\/div\u003e\n\u003cdiv\u003e\u003ca href=\"https:\/\/jacosuperiorproducts.com\/collections\/lightning-tire-air-chucks\" title=\"lightning tire chucks\"\u003e \u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0819\/8117\/files\/Copy-of-INFLATOR_20_large_a20df347-f4f1-4509-b07c-152067a52f0e_240x240.png?v=1580275210\"\u003e \u003c\/a\u003e\u003c\/div\u003e\n\u003cdiv\u003e\u003ca href=\"https:\/\/jacosuperiorproducts.com\/collections\/tire-pressure-gauges\" title=\"tire pressure gauge\"\u003e \u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0819\/8117\/collections\/mainimage_1024x1024_65cd33cd-1d61-4f86-952f-1a1da447f4c9_240x240.jpg?v=1570659938\"\u003e \u003c\/a\u003e\u003c\/div\u003e\n\u003cdiv\u003e\u003ca href=\"https:\/\/jacosuperiorproducts.com\/collections\/air-hoses-fittings\" title=\"air hose\"\u003e \u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0819\/8117\/collections\/Copy-of-PRESSURE_1_240x240.png?v=15802772299\"\u003e \u003c\/a\u003e\u003c\/div\u003e\n\u003c\/div\u003e","image":{"created_at":"2023-06-08T09:46:07-05:00","alt":"tire air chucks 1\/4 inch NPT","width":1000,"height":1000,"src":"\/\/jacosuperiorproducts.com\/cdn\/shop\/collections\/special_offer.png?v=1686235847"}}]

100% FREE SHIPPING ON ALL ORDERS IN THE USA!

JACO Superior Products

303-386-4364

See Product Video

Quantity

In Stock & Ready To Ship

100% Free Shipping For All USA Orders!

"Closed Flow" options coming May 2025!

Engineered for precision and performance, the Lightning S2-Series tire air chuck features our patented “push-to-lock” quick-connect nozzle that instantly creates a secure, air-tight seal to your tire valve. Built from ultra-durable, lightweight aircraft-grade aluminum alloy, it connects to any standard tire inflator gauge or air hose. The built-in quick-release button allows for rapid detachment from the valve stem with zero air loss — making it the perfect upgrade to any tire inflation air system.

Know Your Flow Type

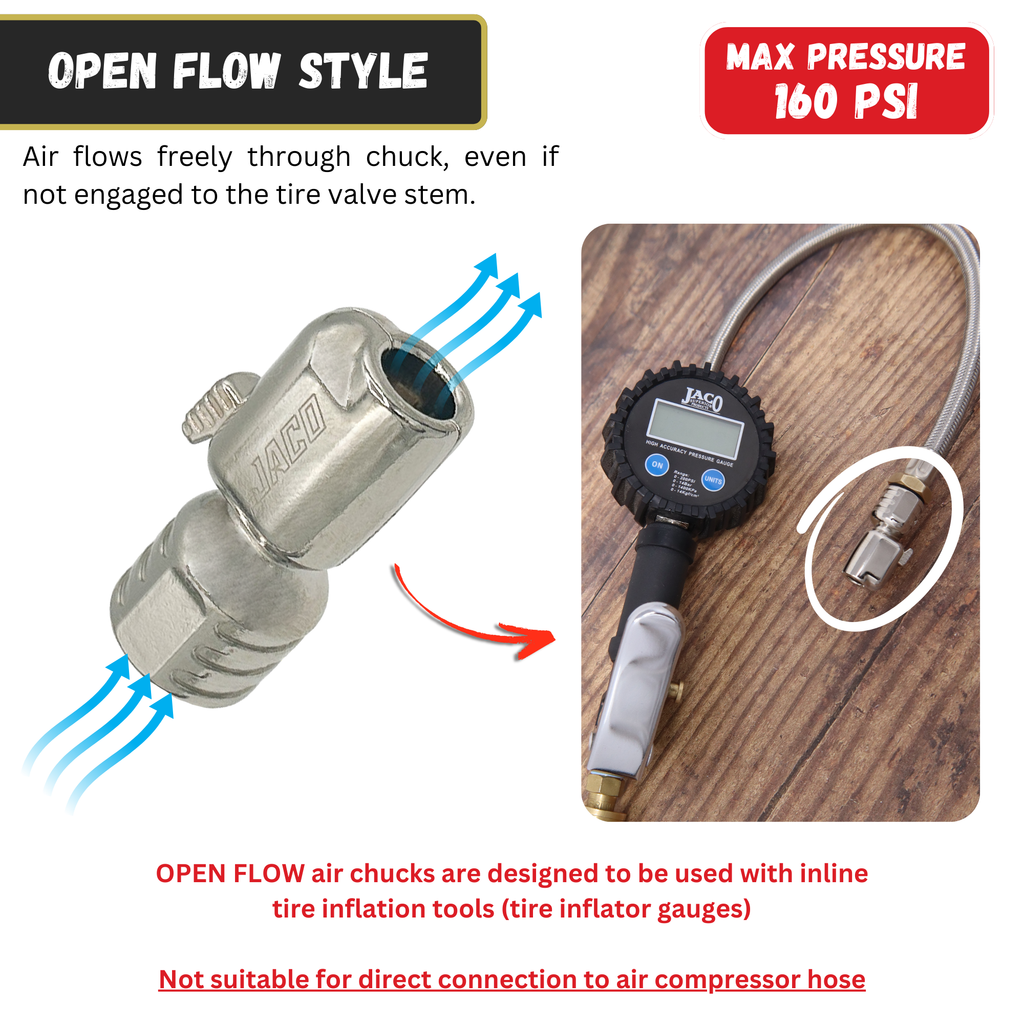

OPEN FLOW: Air passes freely through the chuck whether or not the chuck is engaged with the tire valve stem. For use with inline tire inflation tools. Not suitable for direct connection to pressurized airline.
CLOSED FLOW: Air will only pass through if the chuck is engaged with the tire valve stem.

Choose OPEN FLOW for:

Attachment to inline tire inflator gauges (or similar inflation tools)
Attachment to portable 12-volt tire inflators (Requires Lightning Air Adapter)

Choose CLOSED FLOW for:

Direct connection to air compressor hose
Automatic 4-tire inflation/deflation systems (i.e. MORRFlate, Thor's Lightning, etc.)

Lightning™ Chucks: Revolutionizing the Industry

With time, comes evolution - and with evolution comes the all-new Lightning™ Series air chuck collection by JACO. This progress is driven by those who demand high-performance air tools built to last for all-day performance in the garage or shop.

We have completely revolutionized the air chuck from the inside-out with many industry-first features - utilizing patented technology & high-density aluminum alloy making our Lightning™ Series the most rugged, reliable, and easy to use collection of air chucks ever.

Introducing the Lightning™ S2-Series:

Quick Specs:

Valve Type: Schrader Valve
Angle: Straight with 360 Swivel Head
Style: Instant Lock-on with Quick-Release
Fitting: 1/4" F-NPT
Flow Type: Available in OPEN and CLOSED Flow

Key Features:

Quick-Connect: Instantly locks onto your tire valve stems with a simple push, creating an airtight seal every time. No more fighting the tire valve stem for a proper seal.
Quick-Release: Instantly detach from the valve stem with zero measurable air loss by pressing the quick-release.
Easy to Use: Simply push the chuck onto the tire valve to lock-on, and press the quick-release button for instant detachment. The 360° swivel head helps eliminate tension on your airline, allowing you to make adjustments without air leaks.
1/4 inch NPT: Easily connects to your tire inflator gauge, air hose, or pneumatic fittings via standard 1/4 inch NPT threaded fittings.
Built to Last: Constructed from durable, lightweight, and aircraft-grade aluminum alloy.

Over 35 Years of Experience: The JACO Difference

Proudly backed by our industry-leading 100% Lifetime Warranty!

Order today while supplies last. Limited stock.

100% FAST & FREE Standard Shipping On All Orders in the USA!

Lightning® is a registered trademark of JACO Superior Products

100% Fast & Free Standard Shipping in the USA!

Most orders are fulfilled within 24 hours.
Real-time shipment tracking provided.
You will receive your order within 3-4 days if you select our free Standard Shipping option.
We also offer flat rate Expedited Shipping (2 Days) for $9.99.

Return Policy

We offer a 100% Satisfaction Guarantee or your money back for all orders. You can return your product to us for any reason within 30 days from the date your order is delivered to you. We will provide you with a pre-paid flat rate USPS Priority shipping label and refund or replace your order immediately.

Warranty Information

We offer an industry-best warranty program for all of our products. Our warranty covers all manufacturing defects, performance issues, or flaws.
See "Product Description" section for warranty coverage for a specific product.

Why Choose JACO

Fast and free shipping for all orders in the USA!
Products stocked coast to coast in our national fulfillment centers
Fast, safe, and secure checkout process
Lowest pricing available online
Industry-best warranty program for all products
Highly skilled customer support team
Over 1 million satisfied customers served
Free returns within 30 days of delivery for any reason
Customers that use our products are always coming back for more, and buying as gifts for friends & family. We must be doing something right!

1. What are tire air chucks?

An air chuck, by definition, is simply a device that is used to hold an object in place while it is being worked on by a pneumatic machine, such as an air compressor.

One of the most common types of air chuck is a tire chuck. Tire air chucks connect to the stem or hose of a tire gauge, inflator, or air compressor. The tire chuck holds the air line onto the tire valve stem, so that air can flow freely between the tire and tool being used to check, inflate, or deflate tire pressure.

2. What's the difference between "open" and "closed" flow air chucks?

Open Flow

Open flow air chucks allow the air to pass freely through the chuck, even if the chuck is not engaged with the tire valve stem. Open flow air chucks do not have an internal check valve. This style is ideal for use with 12-volt tire inflators, onboard air compressor systems, hand-operated tire inflator tools, and tire gauges.

Closed Flow

Closed flow air chucks feature internal check valve that block air from flowing through unless the chuck is engaged with the tire valve stem, which makes them more efficient for using directly on the air line of an air compressor with tank such as a pancake-style compressor.

3. What makes Lightning™ Air Chucks different?

Our Lightning™ Series air chucks utilize industry-first features that make them the strongest, most reliable, and easy to use air chucks ever made. Before we get into how our Lightning™ Chucks work, let's first cover the other common types of air chucks that you will find.

Clip-on style

These are the most common air chucks you will see. They have been around for a long time without much innovation or change and are usually made from steel or brass. However, they have quite a few drawbacks.

If you've ever used these, you probably have experienced how inconsistent they can be. Often times, you will need to "fight the valve stem" to get a proper seal. The clip-on mechanism is usually pretty stiff, and when you do get a decent seal it's hard to maintain that seal without some minor (or even major) air leakage, especially when using with an air compressor or when you move the hose around. These chucks are usually very sensitive to movement, and a slight tug of your air hose can completely compromise your seal.

What's worse, the clip-on mechanism is not very smooth and often requires multiple attempts to get a proper seal. Also, the body of these chucks are often made up of a few different components that are held together by threading, making them very easy to fall apart on you.

Manual style

Next, is the "classic" or "manual" air chuck models. These types of air chuck require you to hold them onto the valve stem for as long as you're working on your tires - they do not clip-on or hold the seal on their own. Although these usually have less problems than the above clip-on style chucks in terms of falling apart, they are still a pain because you are required to constantly force the chuck onto your valve stem to maintain the connection. This can become tiresome very quickly, and is our least preferred option due to the difficulty of use and manual labor.

Twist-on style

If you have ever shopped for a portable 12V tire inflator - you have probably seen twist-on air chucks. These types of air chucks are usually made of plastic, steel, or brass and require you to fully twist the chuck on and off the valve stem. These actually provide a decent seal when fully twisted on, but the process of twisting them on and off the valve stem takes a lot of time. What's worse, you are almost guaranteed to lose a decent amount of air from your tire during the disconnection process.

Although these are okay for casual use (i.e. emergency tire inflators in your trunk) we do not recommend these for anything more than that.

Lightning™ Air Chucks

We have solved all of the problems of the previous three air chuck options, resulting in the strongest, most reliable, and easy to use air chucks ever.

100% airtight seal every time

Our patented AirLock™ Internal Locking System utilizes internal locking clamps with superior hold strength that lock onto the tire valve with a simple push, providing a 100% air tight seal that will never leak or fail you, even under high pressure or movement. Most of our Lightning™ Series air chucks offer one of more integrated 360-degree swivel points that allow you to completely rotate the chuck from various points, allowing easy access to the tire valve stem from any angle, while eliminating any tension that will cause other air chucks to "pop off" or leak air.

No more fighting the valve stem for a proper seal. No more air loss.

Lightning Fast Removal, Zero Air Loss.

Next, we have integrated Quick-Release Technology into all of our Lightning™ Series air chucks. Our quick-release valves are easily accessible on every model air chuck we offer, allowing you to rapidly disconnect from the tire valve stem with absolutely zero air loss - completely eliminating any margin for error when precision matters most.

Easy to Use, Built to Last.

Finally, we have engineered all of our Lightning™ Series air chucks with durable, lightweight, and high performance metal alloys - ensuring they will never rust, wear, or fall apart on you.

4. Which JACO tools are compatible with your Lightning™ Series Air Chucks?

All of our tire gauges and inflator tools that accept 1/4 inch NPT attachments will work with our Lightning Air Chucks.

6. Will these chucks fit air hoses and tools that are not made by JACO?

Yes, they are compatible with any air hose or tool that features 1/4" NPT threading. Our Lightning™ Series air chucks are laser-cut to precision with universal 1/4" F-NPT threads for maximum compatibility with any air gauge, inflator, compressor, fitting, or air hose that uses this standard.

6. Can I use these with 12-volt tire inflators?

Most 12-volt tire inflators have twist-on or latch-on valve stem nozzles. You can make it work with this special adapter.

However, we also have a lineup of Lightning extension nozzles that are specially designed for 12-volt tire inflators.

7. Why are these so much more expensive than other air chucks?

Lightning™ Chucks are unlike any air chuck you've ever used. We integrate industry-first patented technology that offers far superior performance in every aspect compared to other air chucks available.

8. Where can I purchase Lightning™ Air Chucks?

Lightning™ Series air chucks are available exclusively by JACO. We offer 100% Free Standard Shipping (3-5 days) for all orders in the USA when you place an order here on our official online shop. They are also available on our official Amazon storefront.

Warning of Counterfeit Products

Since these air chucks feature technology, it is inevitable that counterfeit (and potentially dangerous) knock-offs will be produced by companies that are not authorized to sell our air chucks. Always make sure you are purchasing Lightning™ Air Chucks from here on our online store or official Amazon store. Most customers will buy from us either here on our online store or Amazon.com.

Our technology and branding is protected by US Patent & Trademark Law. JACO is the owner of the Lightning™ trademark will take action against any company or seller that infringes upon these intellectual properties.
